Koordenfabriek Van Houte Exsil

Polypropylene splitfilm

The perfect rope for day-to-day use. In comparison with other synthetic ropes polypropylene is the cheapest choice. Polypropylene rope is rot-proof and absorbs little water. The rope feels hard but becomes no harder in use. Polypropylene rope is available in different colours (the colours are of no influence on the quality).

Best price/quality ratio
Available in different colours
Easy to splice
Rot-proof
Floating

3-strand plaited
Polypropylene 8 strand twisted

8-strand plaited

Construction

3-strand twisted

Indication in diam/mm
Coils or plastic spools of 100-200-220m
Strings of 10 and 25m

8-strand plaited (torque free)

Indication in circumference/inch
Coils of 100-200-220m
Mooring ropes: spliced and protected eyes each end

1-, 2- or 3-ply seizing twine

Rolls of 2 kg - 6 rolls per package

Other make-up and construction on request

Standard colour

White, blue, black, orange, ferric oxide (twine brown)
Check for availability
Other colours on request

Properties

Relative density		0,91 (floats)
Temperature resistance		Perfect for use between –30°C and +100°C Melting point 170°C
UV resistance		Best colours are black and ferric oxide (twine brown) Fully stabilised on request
Extension		Circa 18% at break
Flexibility		Feels rather hard
Chemical resistance		Resistant to alkalis, acids and oil

Length measured under reference tension according to EN ISO 9554

Typical applications

Mooring hawsers and springs for ships - Border-rope for sport nets, protection nets and fishing nets - Hoisting slings - Seizing and tying rope

Polypropylene 3-strand and 8-strand

Diam. Ø	Circ.	Mass	Min. breaking load
mm	inch "	kg/100m	T	kN
4	-	0,6	0,21	2,1
5	-	1,25	0,44	4,34
6	-	1,7	0,6	5,9
8	-	3	1,06	10,4
10	-	4,5	1,56	15,3
12	-	6,5	2,21	21,7
14	-	9	3,05	29,9
16	-	11,5	3,77	37
18	-	14,8	4,81	47,2
20	-	18	5,8	56,9
22	-	22	6,95	68,2
24	3	26	8,12	79,7
26	-	30,5	9,4	92,2
28	3 ½	35,5	10,7	105
30	-	40,5	12,2	120
32	4	46	13,5	132
34	-	52	15,2	149
36	4 ½	58,5	16,9	166
38	-	65,5	18,9	185
40	5	72	20,5	201
44	5 ½	88	24,6	242
48	6	104	28,6	280
52	6 ½	122	33,1	325
56	7	142	37,8	371
60	7 ½	163	43,3	425
64	8	185	48,9	480
68	8 ½	209	55	540
72	9	234	61,4	603
76	9 ½	261	68,1	668
80	10	290	75,6	741
88	11	351	90,1	890
96	12	417	107	1050
104	13	490	123	1205
112	14	570	142	1391
120	15	650	163	1597
128	16	740	184	1803
136	17	840	207	2030
144	18	940	231	2265
160	20	1152	283	2775

Polypropylene seizing twine - rolls of 2kg

size	Meter per roll ±
1/600	1080
3/800	420
3/450	240

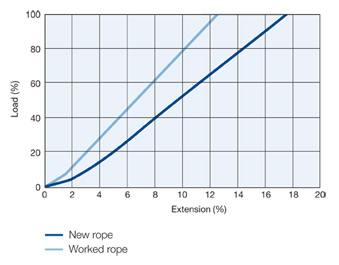

Load VS Extension
